1. Features

1. Modular design, SMT process, high-performance switching power supply

2. Five control modes are optional: 0. Two-way relay alarm

1. Relay J1 alarm output; relay J2 contact PID output

2. Two-way relay alarm output; one-way SSR level non-contact PID output

3. Two-way relay alarm output; one-way SSR level hysteresis control output

4. Relay J1 alarm output; relay J2 hysteresis control output

3. The meter can display the temperature value in degrees Celsius or Fahrenheit

4. Super PID self-tuning function, automatically adapt to the controlled object, especially suitable for incubators, heating furnaces, etc.

2. Technical parameters

1. Working power supply: AC/DC85~260V (other power supplies can be customized)

2. Input signal: Thermocouple: T, R, J, B, S, K, E, WRe3-WRe25 \ thermal resistance: Pt100, Cu50

3. Power consumption of the whole machine: less than 2W

4. Sampling rate: 4 times/second

5. Display range: full scale of input signal

6. Accuracy: 0.2%FS+1 word

7. SSR level: DC 8V/30mA

8. Contact capacity: AC250V/3A; DC24V/5A

9. Operating environment: 0~50°C; ≤ 85% RH,

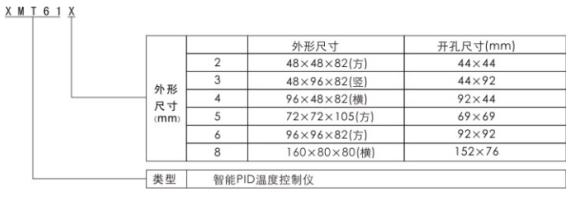

3. Model description
